Conserved quantities and how well a simulation conserved them

Joins [get_energy()], [get_momentum()], and [get_angular_momentum()] into one tibble and adds the relative error of each quantity against its value at the first time step. In exact Newtonian gravity all three are constant, so the errors measure the integrator, and their shape tells you what is wrong when something is.

Usage

conserved_quantities(sim_data, G = NULL, softening = NULL)

Arguments

sim_data: A tibble output from [simulate_system()].
G: The gravitational constant the simulation was run with. Defaults to the value recorded by [simulate_system()] in the `"G"` attribute of `sim_data`, or to [gravitational_constant] if that attribute is absent.
softening: The softening length (in meters) the simulation was run with. The potential energy is computed with the same softened distance, `sqrt(r^2 + softening^2)`, that the force used; if the two do not match, the energy will appear to drift when it has not. Defaults to the value recorded by [simulate_system()], or 0.

Value

A tibble with one row per time step and columns `time`, `kinetic`, `potential`, `energy`, `px`, `py`, `pz`, `Lx`, `Ly`, `Lz`, `energy_error`, `momentum_error`, and `angular_momentum_error`.

Details

`energy_error` is \((E - E_0)/|E_0|\). `momentum_error` is \(|\mathbf{P} - \mathbf{P}_0|\) divided by \(\sum_j m_j |\mathbf{v}_j|\) at the first step (total momentum is often exactly zero, so it cannot be its own scale). `angular_momentum_error` is \(|\mathbf{L} - \mathbf{L}_0| / |\mathbf{L}_0|\). An error is `NA` when its scale is zero.

What to expect

The Velocity Verlet and Euler-Cromer integrators are built from "kicks" and "drifts" that conserve linear and angular momentum exactly, so for `method = "verlet"` or `"euler_cromer"` those two errors should stay at the level of floating-point rounding (around 1e-15) for any time step. Energy is conserved only approximately: with Verlet its error oscillates once per orbit within a band whose width scales as the square of the time step, and does not grow. A steady drift in energy means the time step is too large for the fastest or most eccentric orbit in the system, or that `method = "euler"` was used. A sudden jump marks a close encounter the step could not resolve. A drift in momentum or angular momentum under Verlet points to a problem in the setup rather than the integrator.

Examples

# \donttest{
sim <- create_system() |>
  add_body("Star", mass = 1e30) |>
  add_body("Planet", mass = 1e24, x = 1e11, vy = 30000) |>
  simulate_system(time_step = seconds_per_hour * 6,
                  duration = seconds_per_year * 2)

cq <- conserved_quantities(sim)

# Verlet: bounded energy error, momenta at rounding level
range(cq$energy_error)
#> [1] 0.000000e+00 6.694853e-06
max(cq$angular_momentum_error)
#> [1] 2.619339e-15

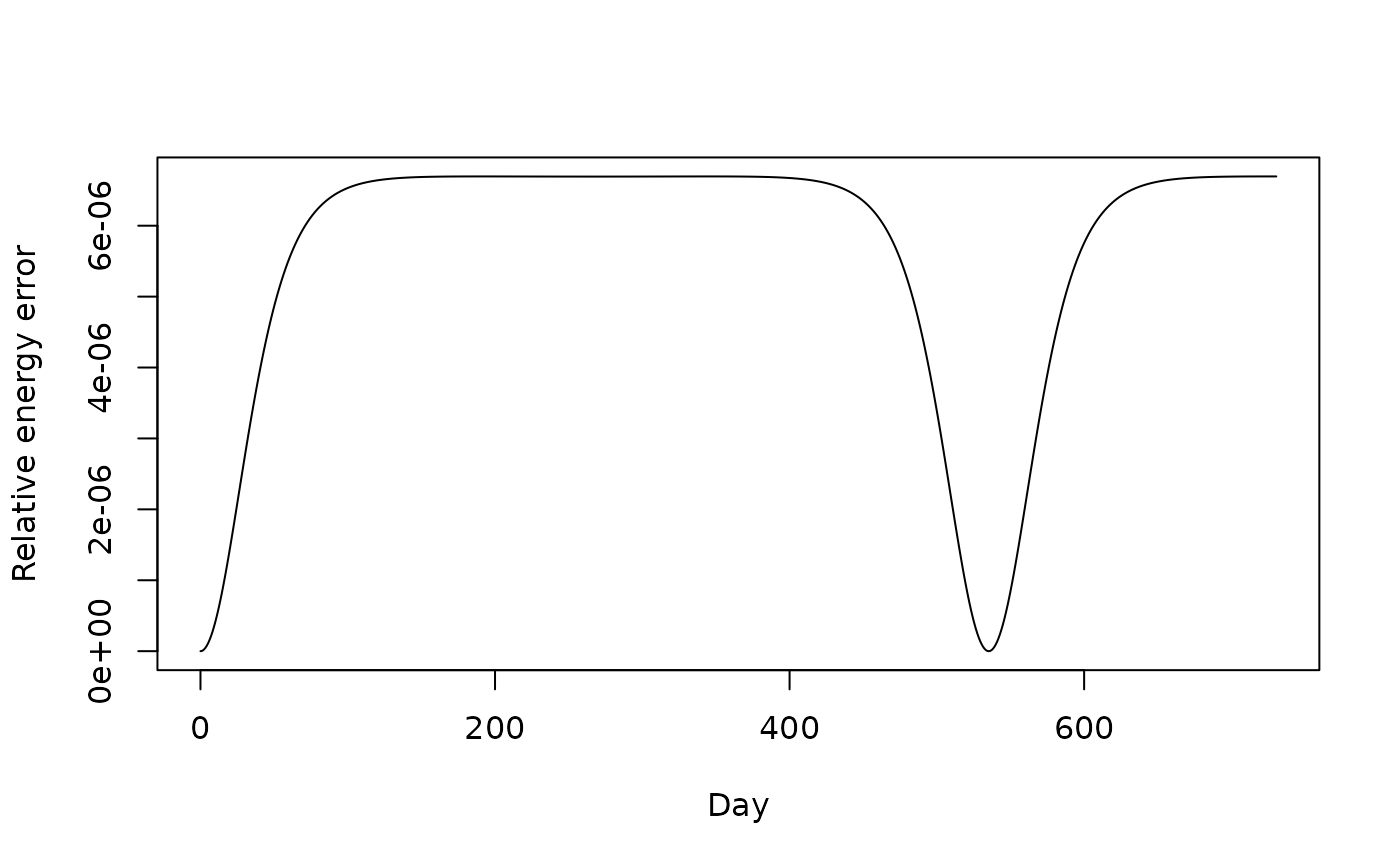

plot(cq$time / seconds_per_day, cq$energy_error, type = "l",
     xlab = "Day", ylab = "Relative energy error")

# }
